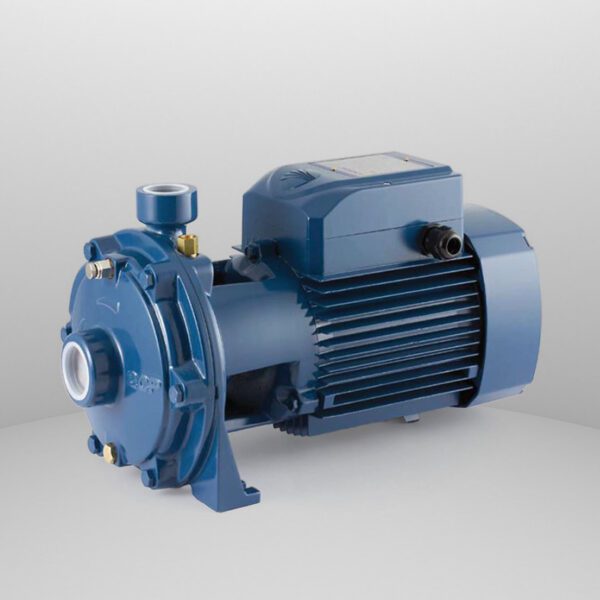

SPN Series

RUGGED TWIN IMPELLER CAST IRON TRANSFER PUMPS.The SPN Series Transfer pump offering everything you need in its new strong and reliable design. The high performance and adaptability to a wide range of applications make them the ideal choice in domestic, civil and industrial applications, in particular for the distribution of water in combination with pressure tanks for boosting pressure applications.

Key Features

  • Easy installation and quiet operation
  • High efficiency twin impellers
  • Rugged cast iron construction with brass impellers
  • High efficiency twin impellers
  • High quality mechanical shaft seal
  • Threaded suction and discharge connections [2CP6S/2CP7S/2CP9T]:
    Suction    32mm [1/4” BSPF]
    Discharge    25mm [1  “ BSPF]
  • TEFC motor, 2900rpm, 240V single phase or 415V 3 phase, IP44 enclosure
  • 240 volt units supplied with 1.5m lead and 3 pin plug

Applications

Washdown, heating and cooling systems. Pressure boosting, agriculture and horticulture.

Contact your Dealer for price and availability.

Downloads

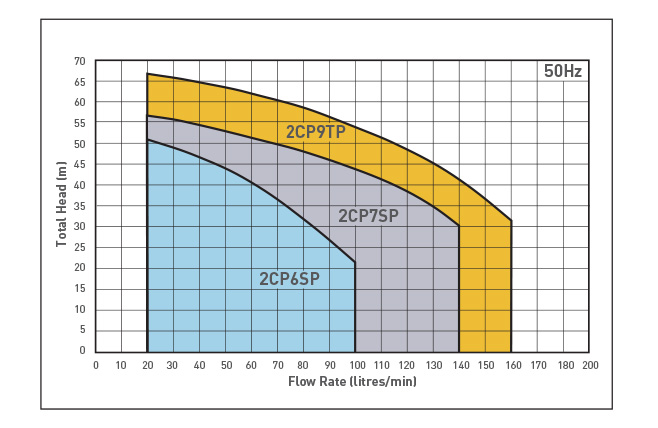

Performance
