CSM240 Vortex Pump

The CSM range of rugged cast iron submersible pumps is suitable for many dewatering, drainage, water treatment and wastewater applications. CSM240 Vortex Pump is suitable for dewatering where some solids may be present. They feature dry motor design with automatic thermal overload protection and mechanical overload switch (autocut). They have dual mechanical seals in a cast iron oil chamber, stainless steel shafts, and dual ball bearings for smooth running and long life.

Key Features

  • 10 mm free passage
  • Vortex impeller
  • Carbon ceramic mechanical seal
  • Auto cut out switch
  • Thermal overload protection
  • Float switch
  • Moisture sealed cable inlet

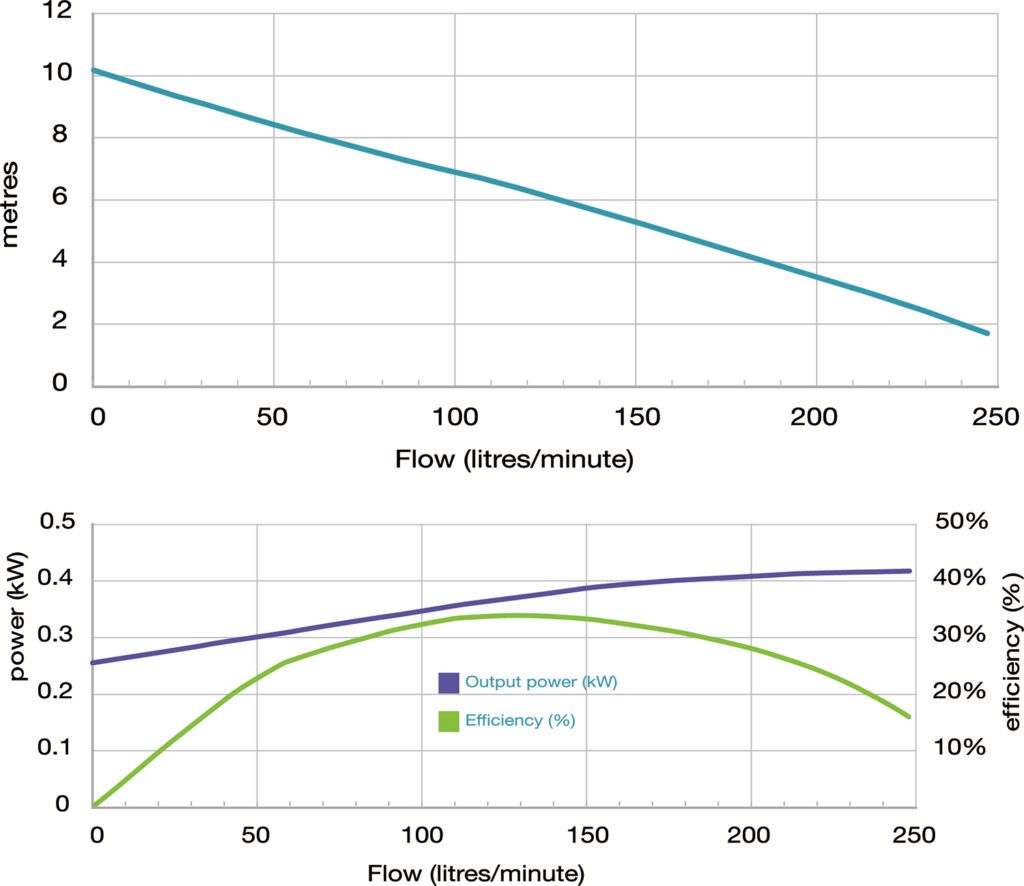

  • Max head -10 m
  • Max flow – 250 lpm


Disposal of non-contaminated rain, waste and ground water from a pit, dewatering (clean water), water treatment circulation, grey water and commercial ponds and fountains

Contact your Dealer for price and availability.
